Telescopic Hydraulic Cylinder Tipping System for Truck Machinery and Vehicle

Basic Info.

Model NO.	FC 4TG-F152*4940-343
Structure	Telescopic Cylinder
Material	Carbon Steel, 27simn, Alloy Steel
Weight	242kg
Lift Capacity	35-74t
Oil Port	1"SAE
Oil Volume	67L
Delivery Time	15-20 Days
Color	as Customer′s Requirement
Working Pressure	20MPa
Working Temperature	-30~+100 Degree Centigrade
Transport Package	Pallets/Plywood
Specification	CE
Trademark	WTJX
Origin	Shandong, Rizhao
HS Code	841221
Production Capacity	200, 000 Sets / Year

Product Description

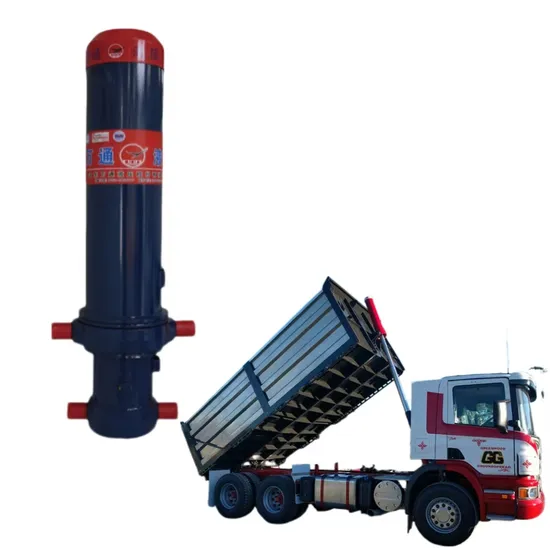

Telescopic Hydraulic Cylinder Tipping System for Truck Machinery and Vehicle
No.1 Company Introduction:
Shandong wantong hydraulic co., ltd. is a specialized custom hydraulic cylinder for tipper truck manufacturing enterpirise which takes up with design, manufacturer, sell hydraulic products. The company covers an area of 180,000 square meters, with 500 emplayees in it. There are 700 sets of manufacturing equipments, such as cold drawing production lines, surface treatment production line, boring and rolling production line, various of digital-control machining and testing equipment. >Professional manufacturer& supplier of Hydraulic Cylinders for more than 22 years;>Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;>Experience in export North America, Australia, Asia, Middle East, Africa;>Hydraulic Cylinders can be Make according to client's requirements;>The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;>We are the supplier of Sinotruk, IVECO, AUMAN, BEIBEN TRUCK, CIMC, JMC, Beiben Truck, CAMC, FOTON, JAC, Dayun, SHACMAN, most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.

No.2 Specification Description

HS Code	8412210000
Application	Dump truck, Tipper, Dump Trailer
Material of cylinder tube	Carbon steel, Alloy steel, 27SiMn
Seal	Parker, Merkel, Hallite, Kaden
Coating	All tubes are chrome plated
Working pressure	16mpa-21mpa
Stroke	3000mm-11000mm
Color	red black blue gray, according to customer's requirement
Mounting Type	Earring-trunnion, double trunnion, double earring (eye end)
Certification	ISO/Ts16949:2009, ISO9001, ABS, API, SG
Package	shrink film, pallet, plywood case
Warranty	Fourteen months after shipping arrival
Main export market	US, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Kenya, Philippines, Bolivia, the United Arab Unites, Singapore
Payment terms	T/T, L/C,
Delivery time	20 days after down payment

Model No.	Max lifting capacity(T)	Rated pressure(Mpa)	Bore diameter(mm)
WTFC 4TG-E152*4280ZJ	28.3	16	158/136/115/95
WTFC 5TG-E152*4280ZJ	28.3	20	158/136/115/95/75
WTFC 4TG-E160*5390ZJ	32.2	20	166/141/115/95/75
WTFC 4TG-F175*4280ZJ	49	20	181/158/136/115
WTFC 4TG-F175*5390ZJ	49	20	181/158/136/115
WTFC 4TG-F175*5700ZJ	49	20	181/158/136/115
WTFC 5TG-F175*5390ZJ	49	20	181/158/136/115/95
WTFC 5TG-F175*5700ZJ	49	20	181/158/136/115/95
WTFC 4TG-F185*4650ZJ	54.8	20	191/166/141/115
WTFC 4TG-F185*5000ZJ	54.8	20	191/166/141/115
WTFC 4TG-F185*5700ZJ	54.8	20	191/166/141/115
WTFC 4TG-F185*6180ZJ	54.8	20	191/166/141/115
WTFC 5TG-F185*5000ZJ	54.8	20	191/166/141/115/95
WTFC 4TG-F200*6000ZJ	64	20	206/181/158/136
WTFC 5TG-F200*6500ZJ	64	20	206/181/158/136/115
WTFC 4TG-F175*4280BH	49	20	181/158/136/115
WTFC 4TG-F175*4650BH	49	20	181/158/136/115
WTFC 4TG-F175*5390BH	49	20	181/158/136/115
WTFC 4TG-F185*5700BH	54.8	20	191/166/141/115
WTFC 4TG-F185*6000BH	54.8	20	191/166/141/115
WTFC 4TG-F185*6180BH	54.8	20	191/166/141/115
WTFC 4TG-F200*6000BH	64	20	206/181/158/136
WTFC 4TG-F175*4280JT	49	20	181/158/136/115
WTFC 4TG-F175*4650JT	49	20	181/158/136/115
WTFC 4TG-F175*5390JT	49	20	181/158/136/115
WTFC 4TG-F200*5700JT	64	20	206/181/158/136
WTFC 4TG-F200*6180JT	64	20	206/181/158/136
WTFC 4TG-F175*4450HT	49	20	181/158/136/115
WTFC 5TG-F200*6180AF	64	20	206/181/158/136/115

No.3 Complete Manufacturing Processes
700 sets manufacturing equipment,such as cold drawing production line ,heat treatment production line ,surface treatment production line,testing equipment,various digital-control machining equipment,gantry style linear electroplating production line.

>Owned plating plant founded in 1998;>Owned honed tube plant founded in 2000;>Owned Heat treatment founded in 1995;>Each processing under our control, each products,every step under strict quality control;
No.4 Advantage
1) Professional, skilled, reliable.2) One-stop total solution3) Ready stock goods with fast delivery4) Customizable: Non-standard sizes are also available5) Small quantity is acceptable6) Refund or replacement for any product faulty
No.5 Dream
*Company vision:Act as the laeder of internal hydraulic industry *Enterprise concept:Better and stronger*Core values:Learning and innovation,equality and justice,customers the first,and quality winning the world*Enterprise spirit:Complete sincerity,complete precision more excellent,and up to date*Quality policy:Pursue zero defects of our products,and realize zeo customers' complains*Company type:Respond quickly,act immediately,finish what to do today,and improve day after day
No.6 Strict Quality Control System And Certificates and Packaging

1. Trial Operation Test2. Start-up Pressure Test3. Pressure-Tight Test4. Leak Test5. Full Stroke Test6. Buffer Test7. Testing the Effect of Limit8. Load Efficiency Test9. Reliability TestEvery piece of hydraulic cylinder are tested and will send out only after they are pasted the each test. Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

No.7 After-service
1).Pre-sale service: Keep communicating with the truck manufacturers , including selection of product model , design of hydraulic system, test of performance and analysis of the accident. Once the problems occur, we will solve them immediately together with truck manufacturers 2).The sale service: Provide training and technical support for users. 3).After-sale service: Solve the problem firstly, then analyse responsibility ; Replace the system components immediately if any need. 4). 24 hours telephone service hotline.
No.8 Rich Market Experiences and Exhibitions

We are the supplier of Sinotruk, CAMC, CIMC, Beiben Truck, AUMAN, JMC, FOTON, JAC, SHACMAN, Dayun, IVECO most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.We attended each Bauma ,Las Vegas exhibition, the world grade fair for construction equipments, building material machines, mining machines and earn much more opportunity to extend our business to oversea market.
No.9 FAQ

Q1. What are the same aspects of your cylinder with Hyva cylinder?
A: Same inside structure.Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's Q2. Compared with Hyva cylinder, what are your cylinder advantages?
A: 1. Rod are chrome plated.2. Tubes are quenched and tempered.3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.4. Good quality yet lower price. Q3: Are you a manufacture or a trade company?
A: Manufacture, we are the leader manufacturer of hydraulic industry in China with 22 years' experience and technology accumulation. With strong technical team we could solve any annoyance of you. Q4: Do you have quality control system?
A: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert. Q5: How can I get a booklet and buy a cylinder from you?
A: Very easy! Just leave me a message or email or call me directly, let me know you are interesting in our products. I will talk with you for the details soon! Q6: Can you tell me the price for the cylinder?
A: 1. Please advice the drawing with technical requirement.2. Please advice the model No. after you check our booklet.3. Please advice the tipping capacity, number of stages, closed length, mounting type and size.4. Please also help advice the quantities, this is very important. Q7: Do your products come with a warranty?
A: Yes, we have fourteen months warranty. In this year, if the quality problem we will free repair for you. Q8: Hydraulic cylinder internal leakage?
A: 3 main reasons causing internal leakage: Overload, polishing bad controlled, cheap seal kits. As is known to all, vehicles in China are often overloaded, our products all designed to bear the overload power. Advanced equipment could assure the polish processing. And we use the imported/TOP brand seals to meet customers' requirement. Q9: What about the quality feedback of your products?
A: We have never received even once quality complaint for many years of international business. Q10: Can you help me to install or recommend what kind of hydraulic cylinder or power pack should I use for specific machine?
A: Yes, we have 25 experienced engineers who are always ready to help you. If you do not know what kind of hydraulic cylinders should be used in your machine, please just contact us, our engineers will design the exact products match your need. Q11: What is the delivery time?
A: Within 15 days for samples.15-30 days for bulk production, which is depend on quality, production process and so on. Q12: What is your main payment term?
A: T/T, L/C, either is available.
